Intelligent Environment Control
Intelligent system monitors temperature, humidity, and light intensity, storing secure data with trend graphs. USB export supports reporting. Designed to meet 21 CFR Part 11 compliance, ensuring data integrity, audit trails, and traceability.
Key Features of Our Control System

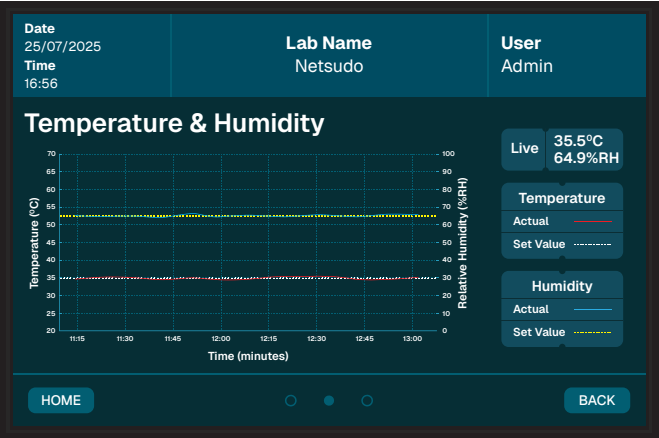

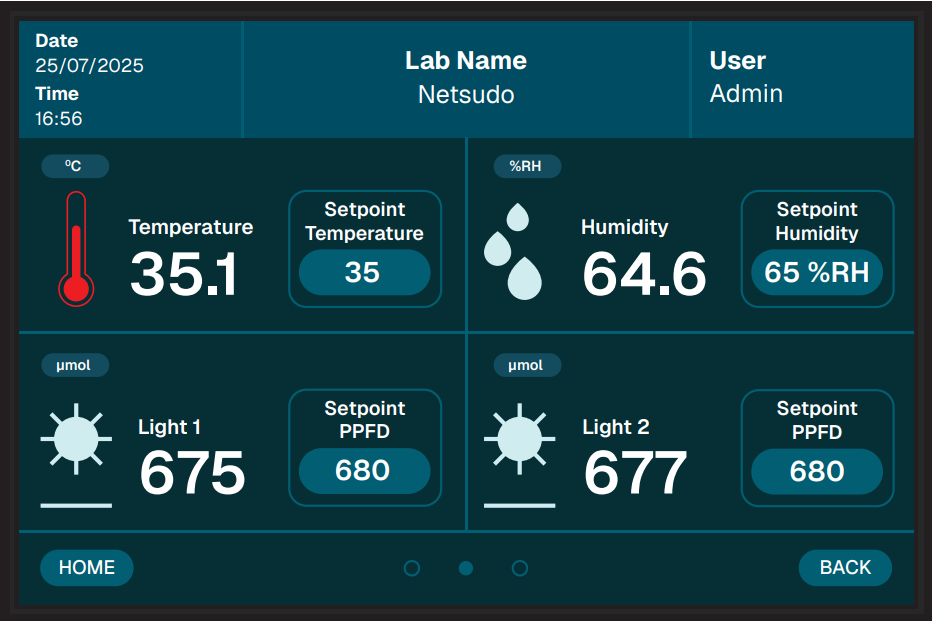

INTUITIVE HMI DASHBOARD WITH CLEAR VISUALIZATION
The 4.5-inch to 10-inch touchscreen dashboard shows setpoints and current values for temperature, humidity, and light. Its responsive interface allows easy navigation and quick adjustments. The clear, vibrant display ensures good visibility, while the durable design ensures reliable

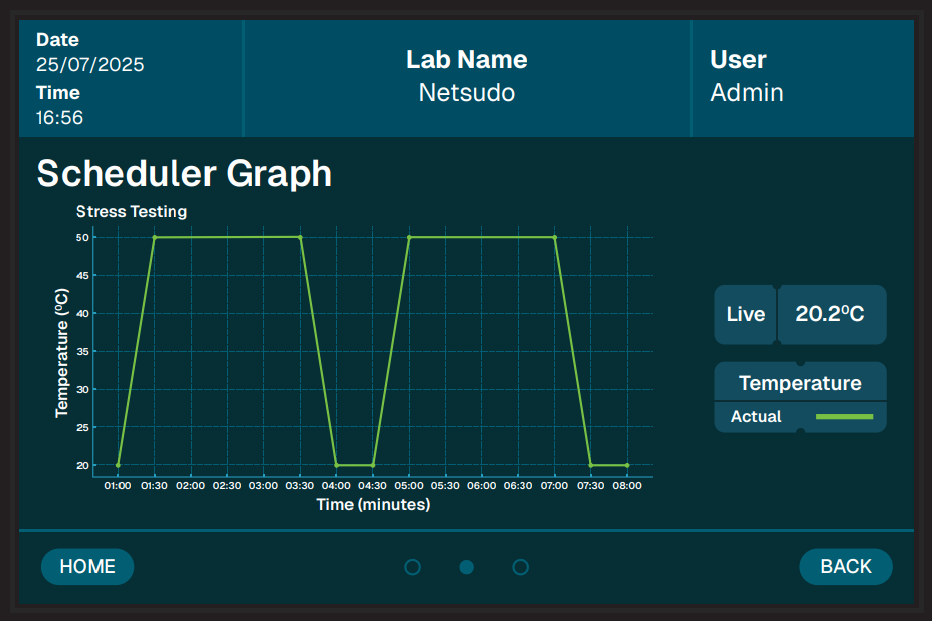

FLEXIBLE TEST SCHEDULING WITH RAMP CONTROL
We offer 24 programmable profiles, each capable of executing 24-hour cycles, allowing users to simulate various environmental conditions with high precision. These programs feature both dynamic ramp and step ramp options, enabling controlled and gradual or rapid changes in parameters such as Temperature, humidity, and light. This flexibility ensures the chamber can accommodate a wide range of testing scenarios with consistency and accuracy.
SCALABLE PROGRAM EXCEUTION SINGLE RUN TO ENDLESS CYCLES
Users can schedule programs to run a specific number of times—ranging from a single cycle up to 99 repetitions—or set them to run continuously for long-term testing. This flexibility supports a wide range of testing scenarios, from short-term evaluations to extended endurance studies, ensuring consistent and reliable environmental simulation.
ROBUST DATA CAPTURE & CONVENIENT EXPORT
The system continuously records critical control parameters—including temperature setpoints, humidity levels, and lighting conditions, capturing both target and actual values. Data is retained for up to seven days and can be conveniently exported to a USB drive, facilitating seamless data analysis, archiving, and reporting.
INTEGRATED ALARM PROTECTION
The system incorporates a comprehensive alarm suite to safeguard operational integrity and testing accuracy. The most recent 16 alarms appear clearly on the display. These include high-temperature threshold alerts, humidity uniformity deviations, and discrepancies from prescribed setpoints. Additional safeguards encompass door-open notifications, test profile variance alerts, and external device malfunction warnings.
SECURE AND CONVENIENT DATA MONTORING ANYWHERE
Real-time and historical data can be accessed remotely from any device—such as a mobile phone or computer—connected to the controller’s network. This remote accessibility enhances convenience and operational efficiency by enabling monitoring and analysis from virtually anywhere. Importantly, this system is designed to maintain complete data integrity and security, ensuring that all information remains accurate and uncompromised during transmission and access.
Temperature & Humidity Controls
Netsudo chambers deliver superior temperature and humidity control using an optimized VCRS with a Hot Gas Bypass System for precise thermal stability. Our proprietary Hybridhumid™ system integrates boiler and atomizer synchronization to ensure accurate, consistent humidity levels—ideal for critical applications in research, pharma, and environmental testing.
Optimized VCRS Using HGBS/Netsudo HybridHumid™
Netsudo chambers offer highly precise temperature and humidity control using advanced engineering systems. An optimized VCRS with Hot Gas Bypass ensures stable temperature without fluctuations. For humidity, our unique Hybridhumid™ system synchronizes boiler and atomizer technologies, delivering uniform and responsive humidity control. This dual-action approach ensures consistent environmental conditions, making our chambers ideal for pharmaceutical testing, research applications, and any process requiring tightly controlled climate conditions.

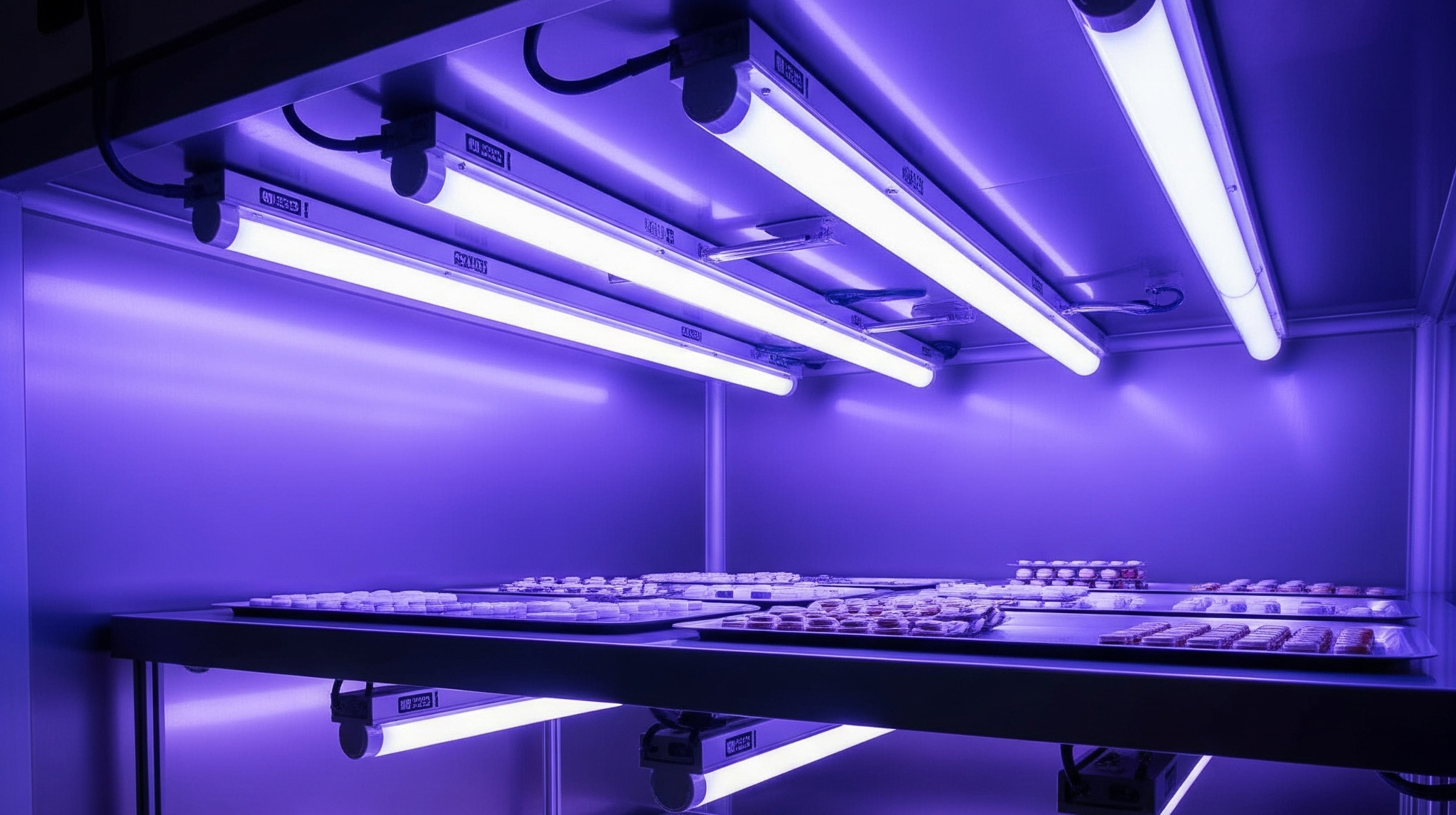

Light & Options
Cool White Lamps
Cool white fluorescent lamps provide bright, neutral light ideal for general illumination and visibility inside the chamber. They support consistent lighting conditions suitable for various laboratory and industrial applications.
FULL SPECTRUM LAMPS
Full spectrum lamps simulate natural daylight, delivering balanced wavelengths across the visible range. This lighting enhances visual accuracy and supports processes requiring true-color rendering and consistent photostability testing.
NEAR-UV FLURESCENT LAMPS
Near-UV fluorescent lamps emit controlled ultraviolet radiation for applications like photostability testing and material degradation studies. They ensure compliance with ICH guidelines and precise exposure conditions within the chamber.
RED-BLUE CLUSTERS
Red-blue LED clusters deliver targeted light wavelengths essential for plant growth and photosynthesis studies. These clusters enhance energy efficiency while promoting healthy development in controlled environment agriculture or botanical research.
Air Circulation
Our chambers ensure superior air circulation through a high-efficiency airflow system that maintains uniform temperature and humidity throughout the interior. This consistent environment eliminates hot or cold spots, ensuring stable conditions for sensitive samples and processes. It’s ideal for applications requiring precise environmental control and long-term reliability.
ULTRA STABLE AIR CIRCULATION
Netsudo chambers are engineered with advanced air circulation technology to deliver uniform temperature and humidity distribution across the entire chamber space. The high-performance airflow system prevents stratification and ensures that every corner of the chamber maintains the same controlled conditions, free of fluctuations. This precise environment is essential for research, pharmaceutical testing, and industrial applications where stability is crucial. By eliminating localised variations, our chambers support accurate, repeatable results and long-term sample integrity. Whether for incubation, stability studies, or material testing, Netsudo’s optimized air circulation system ensures the highest standards of reliability, consistency, and environmental control inside every chamber.
